Intel® Core™ 8th I3/I5/I7 processor
Industrial display, multi-point capacitive touch screen
Onboard 8GB LPDDR3 memory
Fanless design
Panel protection level can reach IP65
Intel® Core™ 8th I3/I5/I7 processor
Industrial display, multi-point capacitive touch screen from industrial panel PC manufacturers
Onboard 8GB LPDDR3 memory
3*USB3.0、1*USB2.0、4*RS232
1*HD 1.4a, support 1080P@60Hz Output, 1*VGA
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
Fanless design
Panel protection level can reach IP65
| System Hardware | |
| CPU | Intel® Core™ I5-8265U (optional i3-8145U/i7-8565U) |
| Memory | Onboard 8GB LPDDR3 memory |
| Storage | M.2, 128GB, up to 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |

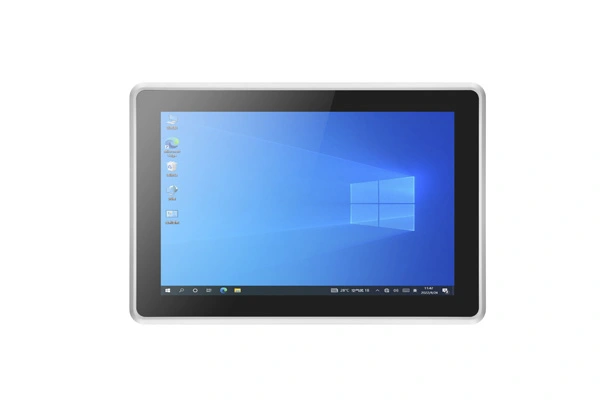

| Display | |
| LCD Type | 12″ LCD |
| Touchscreen Type | Capacitive touch screen |
| Max. Resoltuion | 1280*800 |
| Luminance | 400 cd/m2 |
| Contrast Ratio | 1000: 1 |
| OS | |
| OS | Windows 10、Linux |

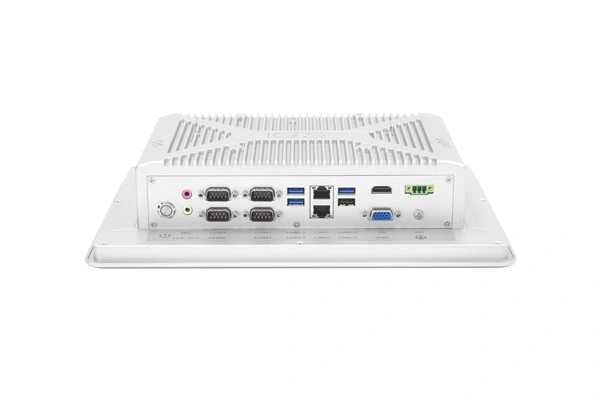

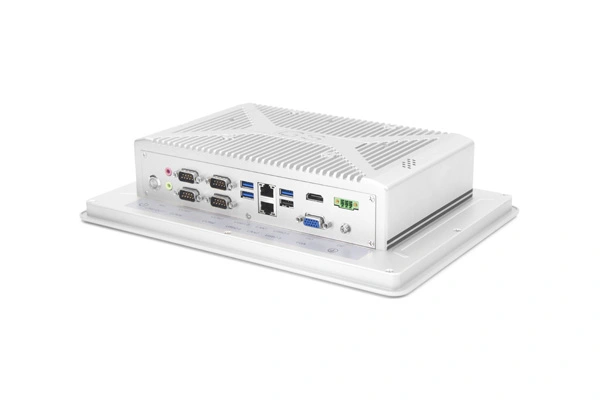

| I/O Ports | |
| USB | 3*USB3.0 +1*USB2.0 |
| Serial Port | 4*RS232 (2*RS485 optional) |
| Network Port | 2* RJ45 Gigabit network interface |
| Audio | 1*Line-out+1*Mic-in |
| Video | 1*HD+1*VGA |
| DC Port | Phoenix terminal 3pin |
| Mini PCIe | 1*Mini PCIe (4G/5G optional) |
| SIM card | 1* Built-in SIM card holder |
| M.2 | 1* M.2 NVME/SATA 2280/2242 SLOT |
| WIFI | WIFI 802.11ac 2x2 1.73 Mbps |
| BT | Bluetooth 5.0 |
| Power | |
| Power | 12V~28V wide voltage input (1 * 3pin Phoenix terminal), standard 19V/4.74A adapter |
| Environment | |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| IP Rating | Front panel IP65 |
| Operating Temp. | ‘-10℃～50℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimension (W x H x D) | 315.8*218*70mm |
| Weight | 3kg |
| Color | Silver |
| Material | Aluminum alloy |
| Mounting | VESA mounting: 100*100mm Embedded installation: 302.1*204.3mm |
