Intel® Bay Trail J1900 2.0GHz processor
Industrial display, multi-point capacitive touch screen
4GB DDR3L memory, maximum support 8GB
Intel® Bay Trail J1900 2.0GHz processor
Industrial display, multi-point capacitive touch screen
4GB DDR3L memory, maximum support 8GB
1*USB3.0, 3*USB2.0, 4*RS232
1*HD display interface, 1*VGA
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
Fanless design
Panel protection level can reach IP65
| System Hardware | |
| CPU | Intel® Bay Trail J1900 quad-core four-thread processor |
| Memory | 4GB DDR3L, up to 8GB |
| Storage | M.2, 128GB, up to 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 215″ LCD |
| Touchscreen Type | Capacitive touch screen |
| Max. Resoltuion | 1920*1080 |
| Luminance | 250 cd/m2 |
| Contrast Ratio | 1000: 1 |
| OS | |
| OS | Windows7/10、Ubuntu |
| I/O Ports | |
| USB | 1*USB3.0 +3*USB2.0 |
| Serial Port | 4*RS232 (2*RS485 optional) |
| Network Port | 2* RJ45 Gigabit network interface |
| Audio | 1*Line-out+1*Mic-in |
| Video | 1*HD+1*VGA |
| DC Port | Phoenix terminal 3pin |
| Mini PCIe | 1*Mini PCIe (WiFi+BT/4G/5G optional, One Choice from Three) |
| SIM card | 1* Built-in SIM card holder |
| M.2 | 1*M.2 SATA 2242 SLOT |
| GPIO | NA |
| Expansion port | PCIE/LPC/I2C/2*RS232 |
| Power | |
| Power | 9-32V wide voltage input, standard 12V/5A adapter (optional adapter for external expansion POE module) |
| Environment | |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| IP Rating | Front panel IP65 |
| Operating Temp. | ‘-10℃～50℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Humidity | 95% @40℃, non-condensing |
| Mechanical | |

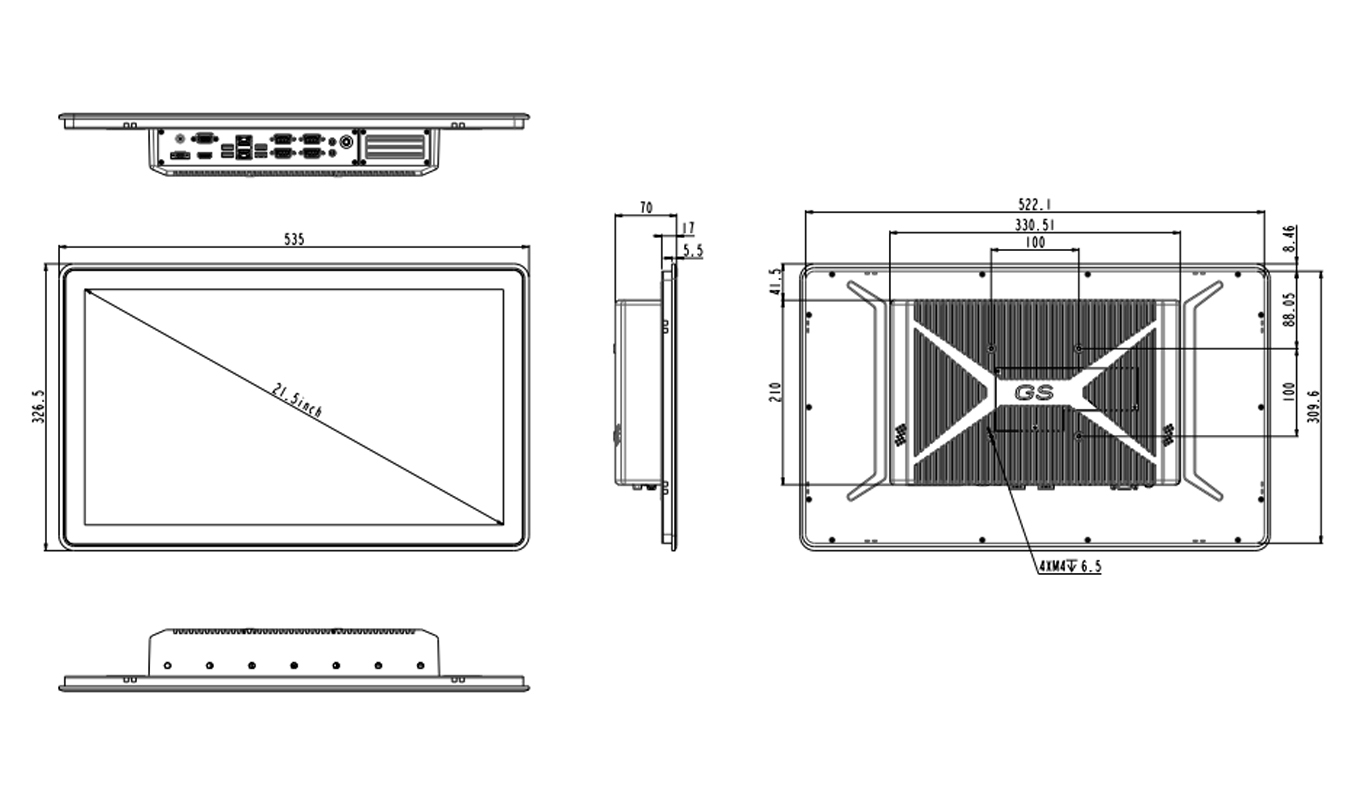

| Dimension (W x H x D) | 535*326.5*70mm |
| Weight | 6.5kg |
| Color | Silver |
| Material | Aluminum alloy |
| Mounting | VESA mounting: 100*100mm Embedded installation: 459.49*306.4mm |
