Geshem 12 Inch Intel 12th Gen. i3/i5/i7 Economy Capacitive Panel PC Overview

Name: 12 Inch Intel 12th Gen. i3/i5/i7 Economy Capacitive Panel PC
Brand: Shenzhen Geshem Technology Co., Ltd.

TY121-GS12XB

Get A Quote

Spec Download

Benefits

Specification

Deminsion

Benefits of 12 Inch Intel 12th Gen. i3/i5/i7 Economy Capacitive Panel PC

2*DDR4 8GB (up to 32GB supported)
4*USB/1*RS232/485/422,DB9,Jumper switching
1*HD/1*VGA/2*RJ45/2*Audio
Fanless design
Power Input Standard 12V/5A Phoenix terminal(Optional with electric self starting and 9-36V wide voltage input)

System Hardware
CPU	Intel® Processor Core™ /N-series Alder Lake 12th Gen i3/i5/i7 & N97/N100	Memory	8GB (optional 16/32GB)
Watchdog	0-255 seconds/grading implemented through system software	Storage	128GB SSD (optional 256/512GB)

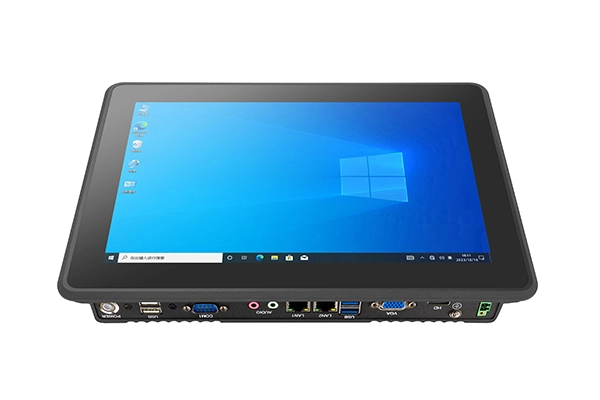

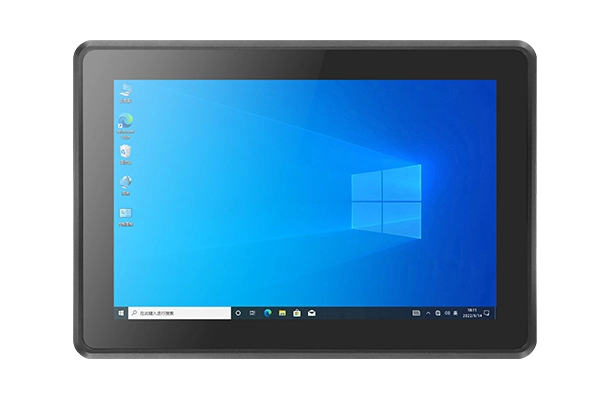

Display
LCD Type	12.1″	Luminance	300 cd/m2
Max. Resolution	1280*800	Contrast Ratio	1000: 1
Touchscreen Type	12.1" Multi point capacitive touch screen
OS
OS	Windows 10、 Ubuntu

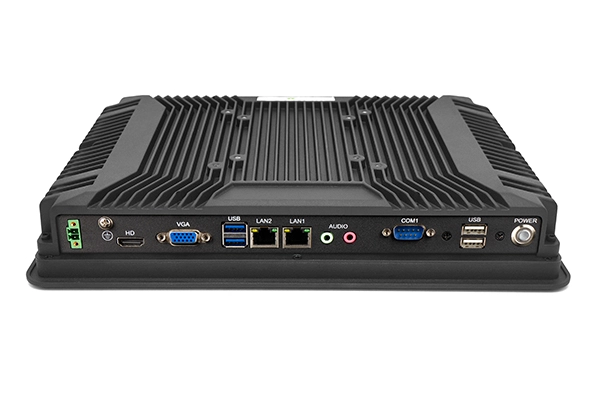

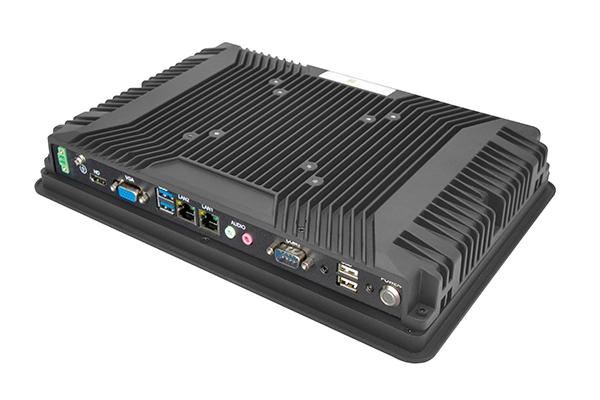

I/O Ports
USB	2USB3.2, 2USB2.0(optional USB3.0)	Audio	1Line out, 1MIC in
Serial port	1RS232/485/422，DB9，Jumper switching （optional 3RS232/485/422，DB9，Jumper switching）	Video	1HDMI，1VGA(optional 1*HDMI/DP/DVI)
LAN	2*RJ45 (optional Realtek)	Expansion Slot	Optional dual band WIFI/BT, optional 4G/5G communication
SIM Card	Optional with 4G/5G
Power
Power Input	Standard 12V/5A Phoenix terminal(Optional with electric self starting and 9-36V wide voltage input)
Environment
Vibration Protection	5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration	Operating Temp.	-10℃～60℃, Surface air flow
Shock Protection	10g acceleration, 11ms cycle	Storage Temp.	-20℃～70℃
Reliability	MTBF ≥ 30000h; MTTR ≤ 0.5h	Humidity	95% @ 40℃, no condensation
IP Rating	Front panel IP65

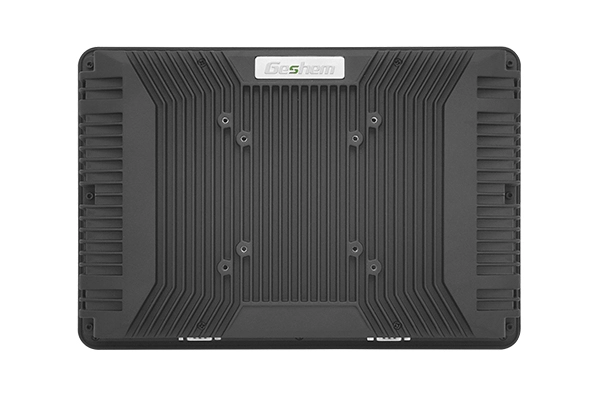

Mechanical

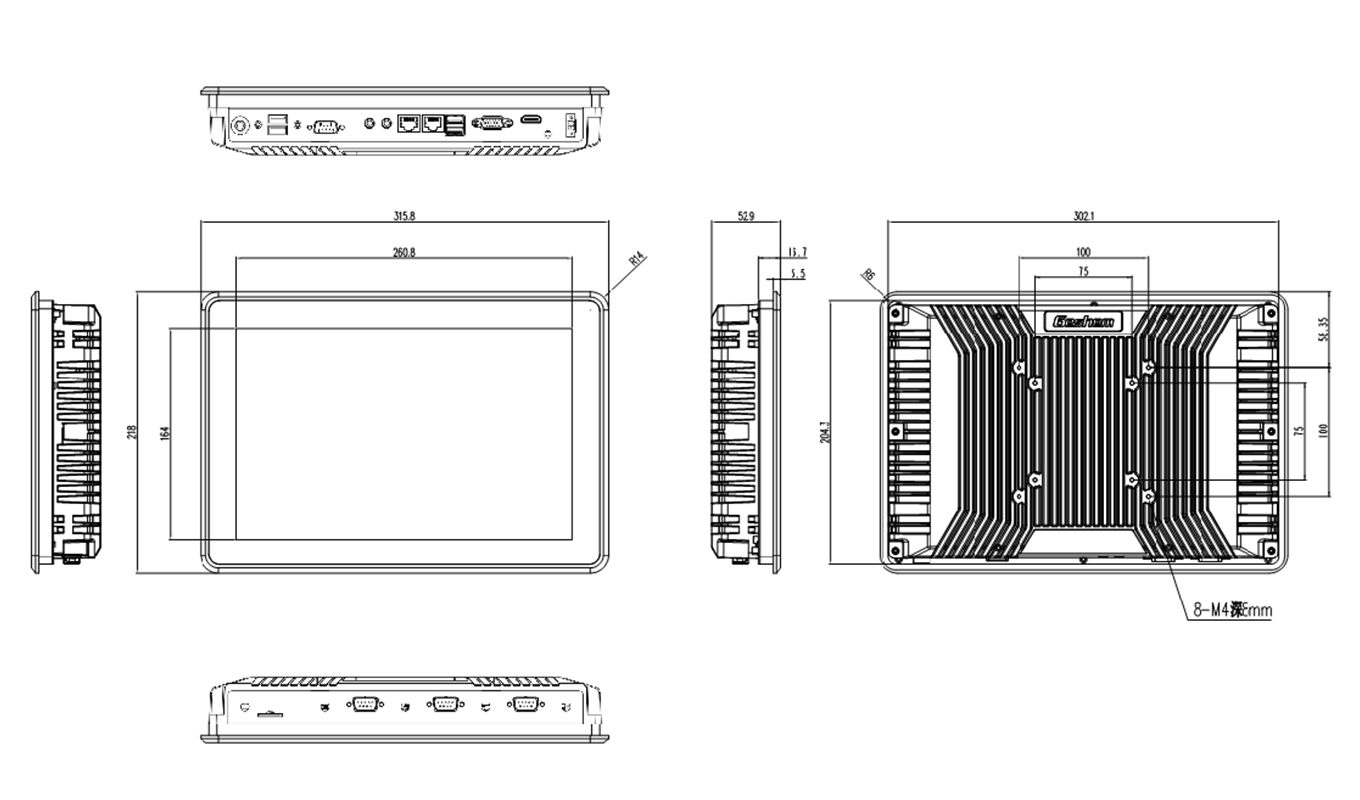

Dimension (WxHxD)	315.8mm218mm52.9mm	Material	All metal fanless design
Weight	3.5kg/3.9kg(N.W./G.W.)	Mounting	VESA Installation: 7575mm/100100mm Embedded Installation: 302.10mm*204.30mm
Color	Black
