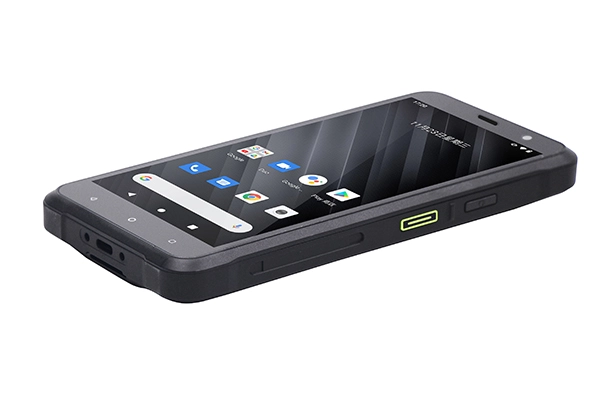

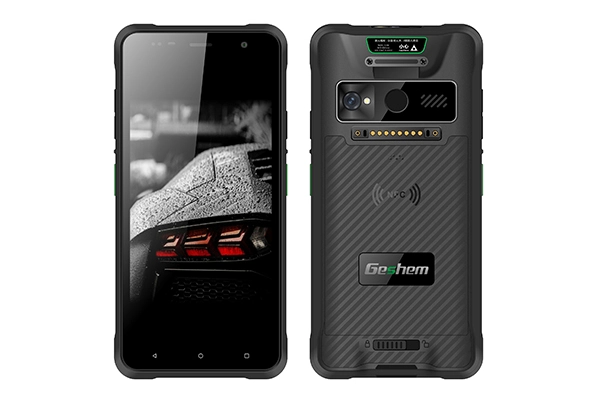

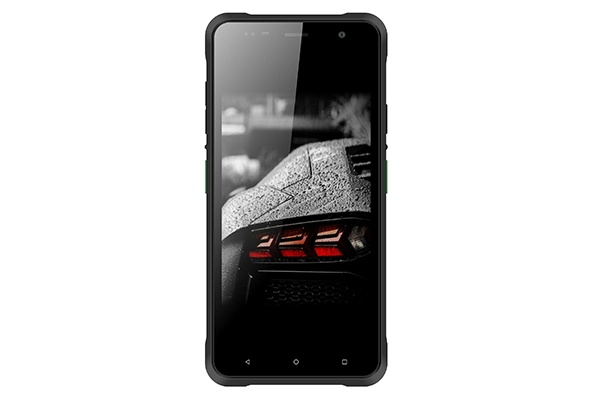

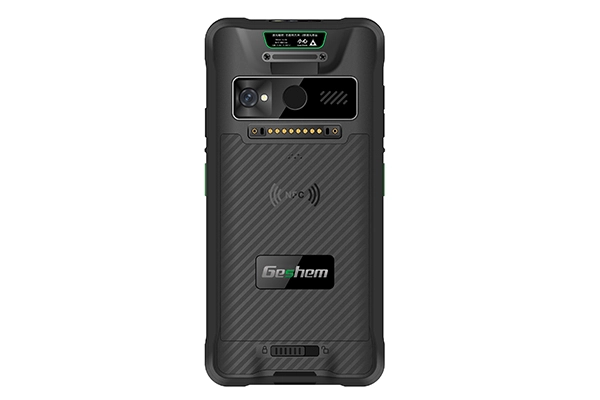

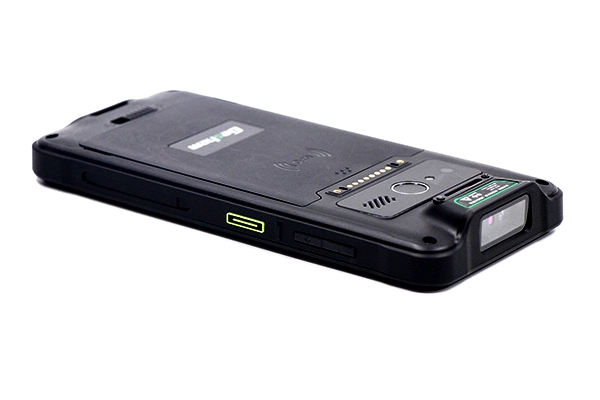

Geshem 5.7 Inch MT6762 Octa-Core 2.0GHz Processor PDA Handheld Terminal

PDA-GS05-6762A

MT6762 Octa-Core 2.0GHz processor

4GB RAM,64GB SSD ROM

5.7"IPS 720*1440 Capacitive Multi-touch

Android 13 support Google Play

4000mAh Detachable Battery

Get A Quote
Spec Download
Benefits
Specification
Deminsion

Benefits of 5.7 Inch MT6762 Octa-Core 2.0GHz Processor PDA Handheld Terminal

  • Optional 2D scanning, Zebra SE-4710/Newland-CM60

  • IP65 Protection Level

  • SIM card slot Support SIM card or 1 TF card (choose one)

  • Sensor 3D accelerometer, distance sensor, light sensor, gyroscope

  • Barcode Scanner Optional Zebra SE-4710/Newland-CM60

  • NFC 13.56MHz,ISO/IEC 18000-3,18092,14443A/B,15693 Mifare Compliance

Specification of 5.7 Inch MT6762 Octa-Core 2.0GHz Processor PDA Handheld Terminal

System Hardware
ChipsetMT6762 Octa-Core,2.0GHzOSAndroid 13,support GMS
RAM4GBPower Supply4000mAh Detachable Battery
ROM64GB

Display


LCD Type5.7" IPSTouch ScreenCapacitive Multi-touch Screen
Resoltuion720*1440

I/O Interface and Sensor
USB1 x TYPE-C, supports 15W charging, OTGAudioSupport, Waterproof Earpiece
CameraFront 5MP,Rear 13 MP with Flash LightButton4 x buttons (Power button, 2 x Customer-defined buttons, Volume button)
SIM card slotSupport SIM card or 1 TF card (choose one)Barcode ScannerOptional Zebra SE-4710/Newland-CM60
Sensor3D accelerometer, distance sensor, light sensor, gyroscopeNFC13.56MHz,ISO/IEC 18000-3,18092,14443A/B,15693 Mifare Compliance
Wireless Communication
4GGSM:B2/3/5/8
WCDMA:B1/2/5/8
FDD:B1/2/3/4/5/7/8/20/26/26/28A/28B
TDD:B34/38/39/40/41
WIFISupport 2.4/5GHz Dual-band 802.11 a/b/g/n/ac

BluetoothBT 5.0

GNSSGPS、BEIDOU、GLONASS、AGPS
Environmental Specifications
Operating Temperature -10℃ ~ -50℃Storage Temperature -20℃ ~ -60℃
IP LevelIP65Dimension162.5*81*21mm, hand grip thickness 16mm
Drop Resistance LevelWood Flooring withstands a 1.2-meter free fallWeight267g (approx.) including battery
Standard

TYPE-C Cable,Adaptor,Hand Strap
Optional Modules


Barcode Scanner2D Scanning , Zebra SE-4710/Newland-CM60 Optional

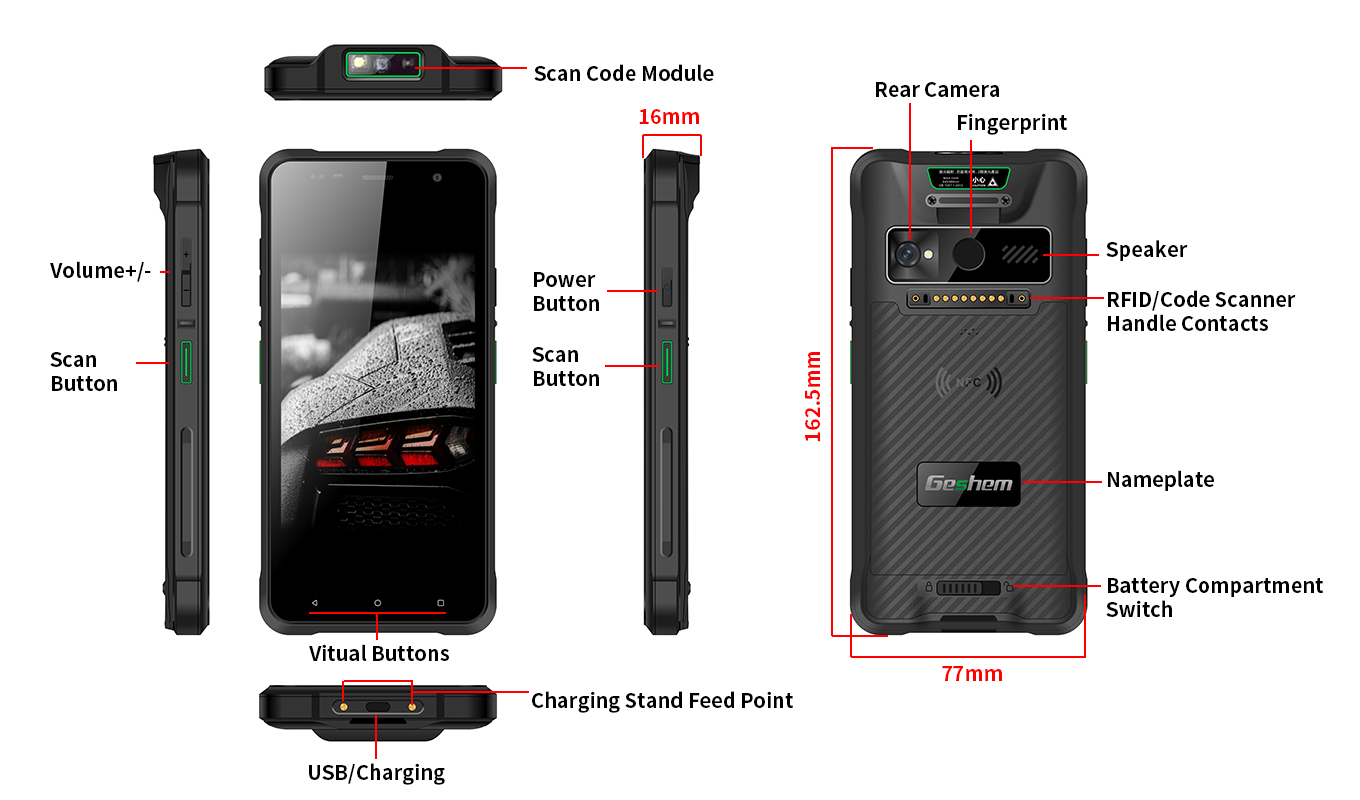

Deminsion of 5.7 Inch MT6762 Octa-Core 2.0GHz Processor PDA Handheld Terminal
