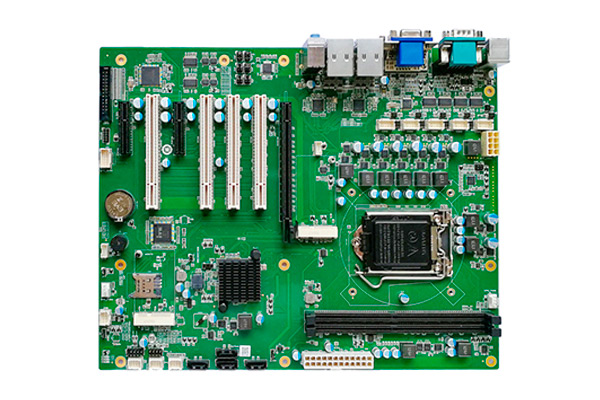

Industrial ATX motherboard based on Intel® H110 Supporting Intel® LGA1151 Gen6/7 i3/i5/i7 CPU, support Pentium®/Celeron® CPU with1×DVI, 1×VGA, 1×HD, 1×internal display expansion interface (optional), DDR4 2133/2400MHz DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.
Intel® H110 support Intel® LGA1151 Gen6/7 i3/i5/i7 CPU, Pentium®/Celeron® CPU
2× 288PIN DDR4 2133/2400MHz DIMM memory slots, single 16GB, max 32GB
4 x SATA interface (support SATA3.0 standard, default support 3), 1 x mSATA/Mini-PCIe interface (optional)
Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability
Built-in digital display expansion interface, can expand LVDS, VGA, eDP and other standard display interfaces according to product application requirements
Provide on-board encryption scheme (optional), which can realize software and hardware binding or key data storage and encryption
| System Hardware | |
| CPU | Support Intel® LGA1151 Gen6/7 i3/i5/i7 CPU, support Pentium®/Celeron® CPU |
| Memory | 2× 288PIN DDR4 2133/2400MHz DIMM memory slots, single 16GB, max 32GB |
| Storage | 4 x SATA interface (support SATA3.0 standard, default support 3), 1 x mSATA/Mini-PCIe interface (optional) |
| Chipset | Intel® H110 |
| Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
| Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
| OS | |
| OS | Ubuntu15.1, Red Hat® Enterprise Linux® 32, 64, Win7 SP1, 8.1, 10, WES 7 |
| I/O Interface | |
| Display Interface | 1×DVI, 1×VGA, 1×HD, 1×internal display expansion interface (optional), support independent dual display output; VGA supports maximum resolution 1920×1200@60HZ, 32bit color depth |
| Expansion Bus | Provide 1×PCIe x16 slot, support PCIe3.0 specification; 2×PCIe x4 slot (PCIe x1 signal), support PCIe2.0 specification; 4×32-bit PCI slot, support PCI Rev2.3 standard |

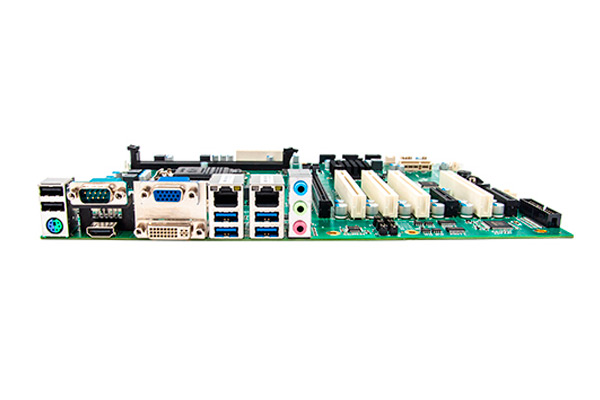

| USB | 6×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel |
| COM | 6×COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection |
| PS/2 | 1×PS/2 keyboard/mouse interface |
| GPIO | 1×8 digital I/O interface |
| LPT | 1×LPT interface |
| Ethernet | Provide 2×10/100/1000Mbps network interface |
| Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
| Environment | |
| Operating Temp. | -10℃～60℃; 5%～95% (non-condensing state) |
| Storage Temp. | -20℃～80℃, 5%～95% (non-condensing state) |
| Mechanical | |

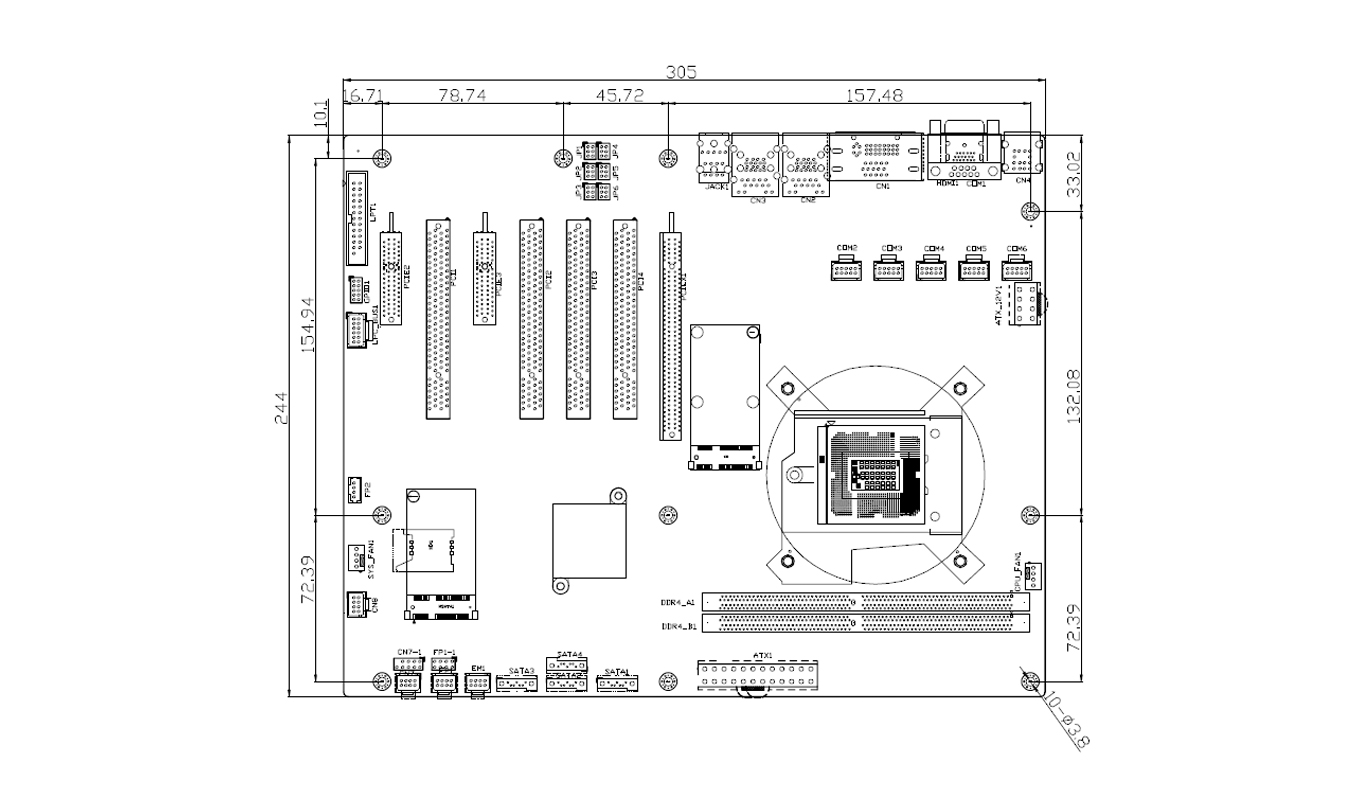

| Dimension (L x W) | 305mm*244mm |
| Ordering Information | |
| ATX-GSH110K | ATX structure single board/Intel® H110 chipset/support Gen6/7 i3/i5/i7 CPU, support Pentium® /Celeron® /2×DDR4 DIMM memory slot, total support 32GB memory/VGA/HD/DVI/3×SATA /1×mSATA/2×Gigabit LAN/6×USB2.0, 4×USB3.0/6×COM port/1×parallel port/2×PS/2/HD Audio/1×8 bit GPIO/4×standard PCI slot/2×PCIe x1/1×PCIe x16/standard ATX power supply |
