System Hardware
CPU	Intel® WHISKEYLKE CORE ™ i3 8145U processor (8th Gen i5/i7 optional)
Memory	8GB (16/32GB optional)
Storage	128GB SSD (256/512GB optional)
Watchdog	0-255 seconds/classification is realized by system software

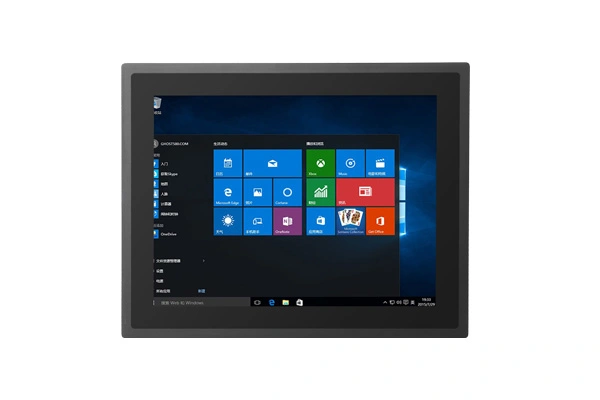

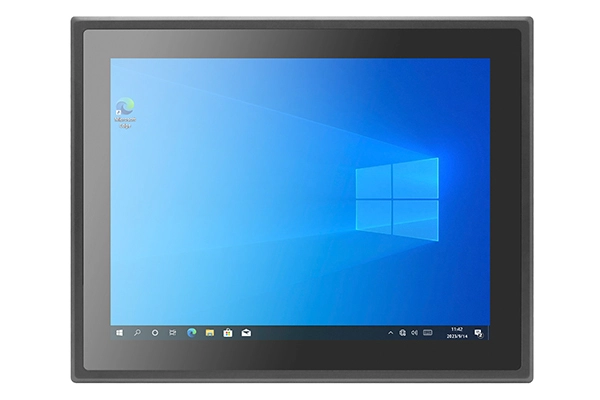

Display
LCD	15.0″
Backlight life	50000h
Resoltuion	1024*768
Luminance	350 cd/m2
Contrast Ratio	1000: 1
Display angle	170°(H)*170°(V)
Touch Screen
Touchscreen	15.0″multi point capacitive touch screen
Transmittance	＞85%
Hardness	6H
OS
OS	Win10,Linux

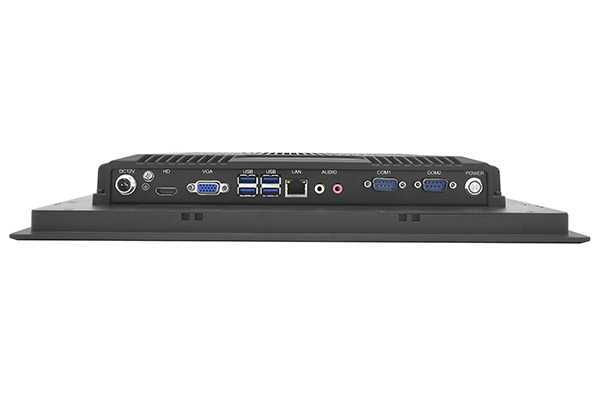

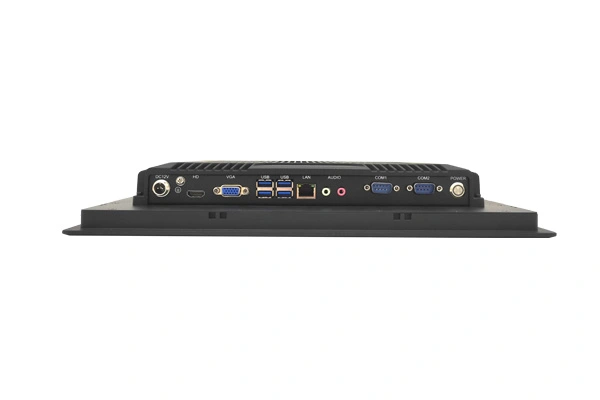

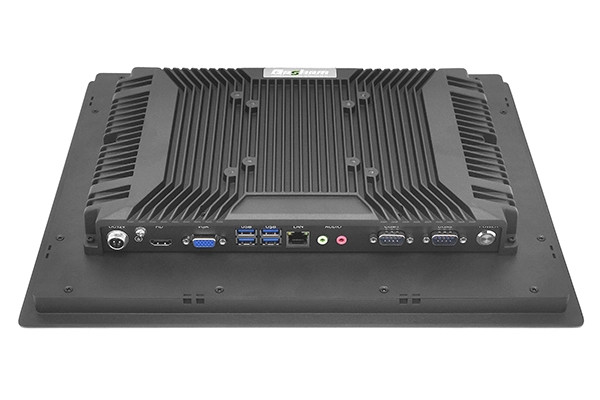

I/O Interface
USB	4*USB3.0
COM	2*RS232（Optional RS485/422)
LAN	11000M LAN port（21000M LAN ports optioanl）
Audio	Mic in, Line out
Vedio	1HDMI,1VGA
Expansion	Dual -band WIFI/4G/5G module optional
SIM card slot	1*SIM card slot
GPIO	1*8bit DIO, occupying a DB9 interface
Power
Power Supply	Standard 12V/5A aviation head adapter（2Pin Phoenix terminals Optional）
Environment
Vibration Protection	5-19Hz/1.0mm amplitude; 19- 200Hz/1.0g acceleration
Shock Protection	10g acceleration, 11ms period
Reliability	MTBF≥30000h; MTTR≤0.5h
Operating Temp	-10℃～60℃, without air flow
Storage Temp	-20℃～70℃
Humidity	95% @40℃, non-condensing
IP Level	Front panel IP65

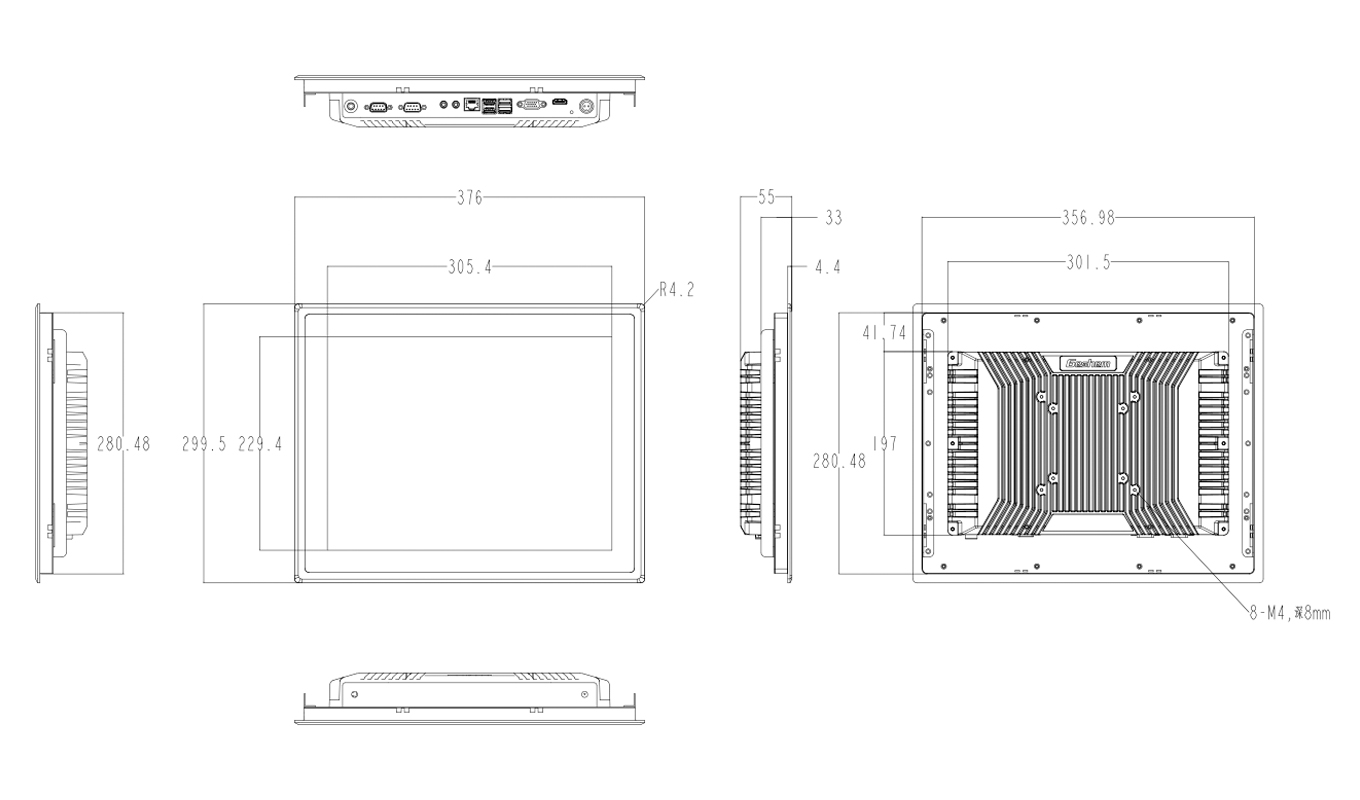

Mechanical
Dimension(LxWxH)	376mm299.5mm55mm
Weight	4.0kg/4.5kg (N.W./G.W.)
Color	Black

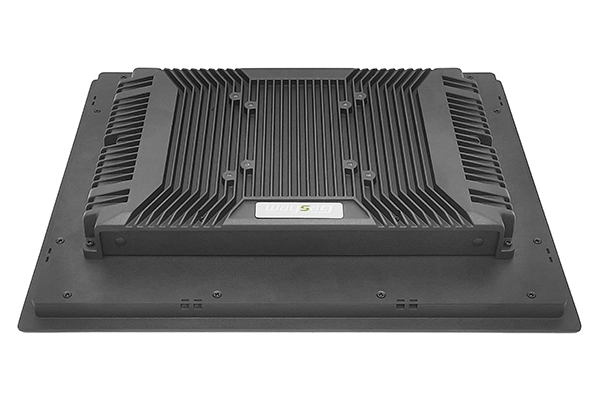

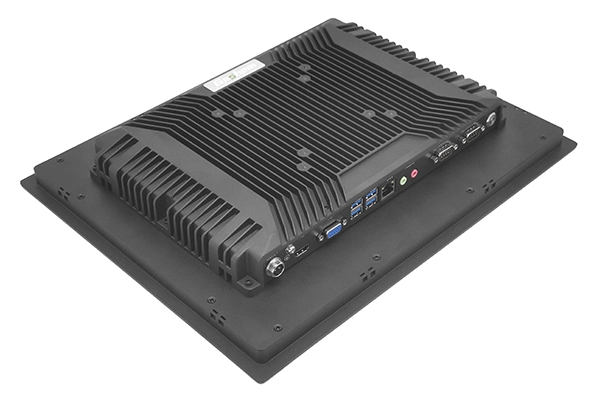

Material	All metal fanless design
Mounting	VESA installation: 100100mm/7575mm Embedded installation: 356.98mm*280.48mm

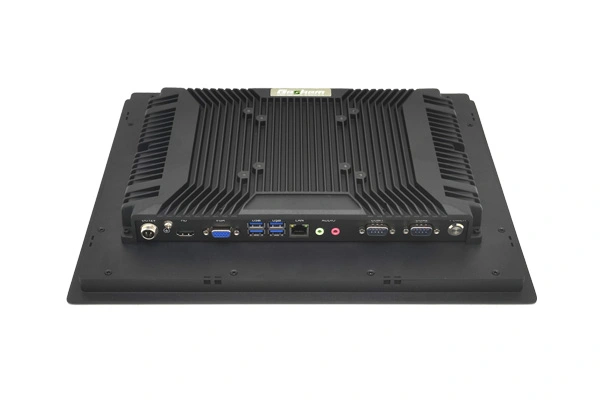

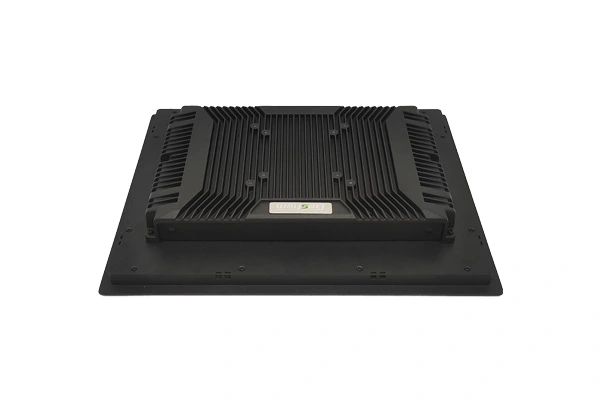

Geshem 15.0 Inch Intel 8th Gen. i3/i5/i7 Economy Capacitive Panel PC
